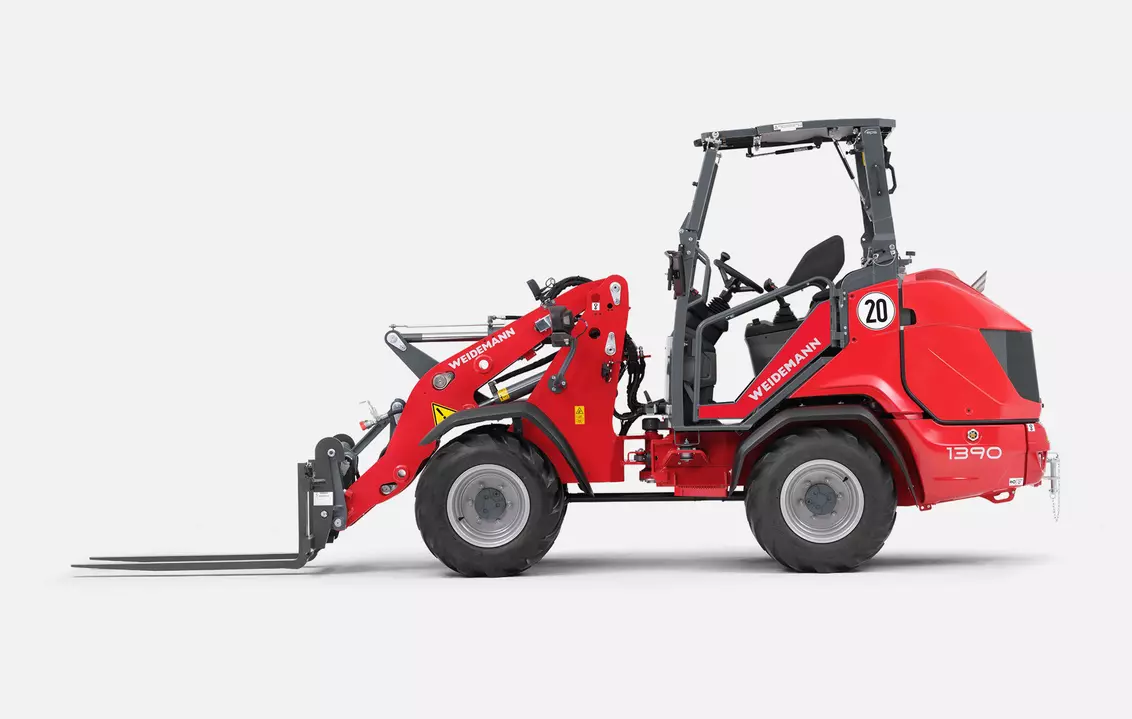

Η νέα γενιά του Hoftrac 1390 διαθέτει ένα ευρύ φάσμα διαμορφώσεων και η απόδοσή του, για παράδειγμα όσον αφορά τον κινητήρα, τους άξονες και την υδραυλική ισχύ, μπορεί να προσαρμοστεί άψογα στις αντίστοιχες εργασίες. Το ηλεκτρονικά ρυθμιζόμενο σύστημα κίνησης έλξης μας, ecDrive (Electronic Controlled Drive), με τέσσερις διαφορετικές λειτουργίες οδήγησης και ηλεκτρικό χειρόφρενο, ανοίγει νέες δυνατότητες εφαρμογής, άνετη ασφάλεια και μια εντελώς νέα αίσθηση κατά την οδήγηση. Ο σχεδιασμός 4 κολόνων της καμπίνας με πανοραμικό πίσω παράθυρο προσφέρει σημαντική βελτίωση στην ορατότητα από το εσωτερικό της καμπίνας. Η εξαιρετική ευρυχωρία της καμπίνας οδηγού και της καμπίνας είναι μοναδική σε αυτήν την κατηγορία μεγέθους.
Τεχνικά δεδομένα
| Engine manufacturer | Yanmar |
| Motor type | 3TNV80FT |
| Cylinder | 3 |
| Drive output | 18.4 kW |
| Drive output | 25 PS |
| At max. rpm | 2,600 U/min |
| Cylinder capacity | 1,226 cm³ |
| Type of coolant | Water |
| Exhaust standard level | V |
| Exhaust aftertreatment | – |
| Average sound power level LwA (operator’s canopy) | 99.3 dB(A) |
| Guaranteed sound power level LwA (operator’s canopy) | 101 dB(A) |
| Specified sound pressure level LpA (operator’s canopy) | 84 dB(A) |
| Average sound power level LwA (cabin) | 99.3 dB(A) |
| Guaranteed sound power level LwA (cabin) | 101 dB(A) |
| Specified sound pressure level LpA (cabin) | 80 dB(A) |
| Engine manufacturer | Yanmar |
| Motor type | 3TNV86CHT |
| Cylinder | 3 |
| Drive output | 33.3 kW |
| Drive output | 45.3 PS |
| At max. rpm | 2,600 U/min |
| Cylinder capacity | 1,568 cm³ |
| Type of coolant | Water |
| Exhaust standard level | V |
| Exhaust aftertreatment | DOC/DPF |
| Average sound power level LwA (operator’s canopy) | 98.1 dB(A) |
| Guaranteed sound power level LwA (operator’s canopy) | 100 dB(A) |
| Specified sound pressure level LpA (operator’s canopy) | 84 dB(A) |
| Average sound power level LwA (cabin) | 98.1 dB(A) |
| Guaranteed sound power level LwA (cabin) | 100 dB(A) |
| Specified sound pressure level LpA (cabin) | 80 dB(A) |
| Engine manufacturer | Yanmar |
| Motor type | 3TNV86CHT |
| Cylinder | 3 |
| Drive output | 40.1 kW |
| Drive output | 54.5 PS |
| At max. rpm | 2,600 U/min |
| Cylinder capacity | 1,568 cm³ |
| Type of coolant | Water |
| Exhaust standard level | V |
| Exhaust aftertreatment | DOC/DPF |
| Average sound power level LwA (cabin) | 97.7 dB(A) |
| Guaranteed sound power level LwA (cabin) | 100 dB(A) |
| Specified sound pressure level LpA (cabin) | 76 dB(A) |
| Operating voltage | 12 V |
| Battery | 77 Ah |
| Alternator | 80 A |
| Operating weight | 2,750 – 3,230 kg |
| Thrust force (max.) | 2,158 – 3,492 daN |
| Lift capacity (max.) | 2,448 – 3,592 daN |
| Tipping load with bucket – machine straight, loading frame horizontal | 1,540 – 2,270 kg |
| Tipping load with bucket – machine pivoted, loading frame horizontal | 1,250 – 1,910 kg |
| Tipping load with bucket – machine straight, loading frame in lowest position | 2,270 – 3,890 kg |
| Tipping load with bucket – machine pivoted, loading frame in lowest position | 1,870 – 3,290 kg |
| Tipping load with pallet fork – machine straight, loading frame horizontal | 1,290 – 1,890 kg |
| Tipping load with pallet fork – machine pivoted, loading frame horizontal | 1,050 – 1,600 kg |
| Tipping load with pallet fork – machine straight, transport position | 1,510 – 2,340 kg |
| Tipping load with pallet fork – machine pivoted, transport position | 1,250 – 1,980 kg |
| Driver’s cab | FSD (eps, cabin) |
| Tank capacity for fuel | 50 l |
| Tank capacity for hydraulic oil | 30 l |
| Type of drive | ecDrive (Electronic Controlled Drive) |
| Drive unit | Hydrostatic via transfer gearbox and universal joint shaft |
| Speed levels | 2 |
| Axle | T94 (PA940) |
| Travel speed Standard | 0-20 km/h |
| Travel speed Option 1 | 0-30 km/h |
| Operating brake | Multi-disc brake on front axle acting on rear axle via universal joint shaft |
| Parking brake | Electro-hydraulic multi-disc brakes with spring suspension in the front axle acting on rear axle via articulated universal joint shaft |
| Differential lock | 100% VA + HA (option) |
| Drive hydraulics working pressure (max.) | 380 (400-470) bar |
| Work hydraulics discharge volume (max.) | 41,6 (49,5-84) l/min |
| Work hydraulics working pressure (max.) | 210 bar |
| Kinematics type | P (PZ) |
| Lifting cylinder | 2 |
| Tipping cylinder | 1 |
| Quick change system | hydraulic |
| Steering type | hydraulically activated articulated pendulum steering |
| Steering cylinder | 1 |
| Oscillating angle | ± 8 degree |
| FSD = operator’s canopy eps = Easy Protection System (fold-down operator’s canopy) DPF = diesel particulate filter DOC = diesel oxidation catalyst Tipping load calculation pursuant to ISO 14397 |
